DIP 스위치
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 회로 | 위치 수 | 전류 정격(암페어) | 전압 정격 | 액추에이터 유형 | 액추에이터 레벨 | 접점 재질 | 접점 마감 | 보드 위 높이 | 장착 유형 | 종단 스타일 | 피치 | 세척 가능 | 기능 | 작동 온도 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78B07STSWITCH SLIDE DIP SPST 0.15A 30V |
2,621 |
|
데이터시트 |
78 | Tube | Active | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6D-6100SWITCH SLIDE DIP SPST 0.03A 30V |
119 |
|
데이터시트 |
A6D | Tube | Active | SPST | 6 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
76PSB03TSWITCH PIANO DIP SPST 0.15A 30V |
24 |
|
데이터시트 |
76 | Bulk | Active | SPST | 3 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76SB10TSWITCH ROCKER DIP SPST 0.15A 30V |
539 |
|
데이터시트 |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
S-4010TASWITCH ROTARY DIP BCD 0.1A 2.4V |
2,504 |
|
데이터시트 |
S-4000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 2.4VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.102" (2.60mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
76RSB06STSWITCH ROCKER DIP SPST 0.15A 30V |
1,758 |
|
데이터시트 |
76 | Tube | Active | SPST | 6 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB12TSWITCH PIANO DIP SPST 0.15A 30V |
3,821 |
|
데이터시트 |
76 | Tube | Active | SPST | 12 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DRR7110CSW ROTARY DIP BCD COMP 0.03A 15V |
201 |
|
데이터시트 |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
78B10STSWITCH SLIDE DIP SPST 0.15A 30V |
10,146 |
|
데이터시트 |
78 | Tube | Active | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

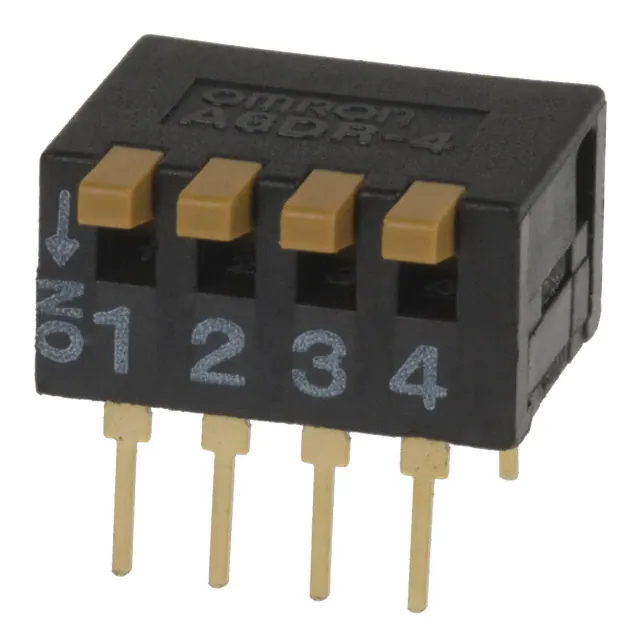

A6DR-4100SWITCH PIANO DIP SPST 0.03A 30V |
798 |
|
데이터시트 |
A6DR | Tube | Active | SPST | 4 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6R-101RFSWITCH ROTARY DIP BCD 0.025A 24V |
255 |
|
데이터시트 |
A6R | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
78RB07STSWITCH SLIDE DIP SPST 0.15A 30V |
4,409 |
|
데이터시트 |
78 | Tube | Active | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6HF-0102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
133 |
|
데이터시트 |
A6HF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-2102-PMHSWITCH SLIDE DIP SPST 0.025A 24V |
777 |
|
데이터시트 |
A6S-H | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
78RB09STSWITCH SLIDE DIP SPST 0.15A 30V |
4,532 |
|
데이터시트 |
78 | Tube | Active | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

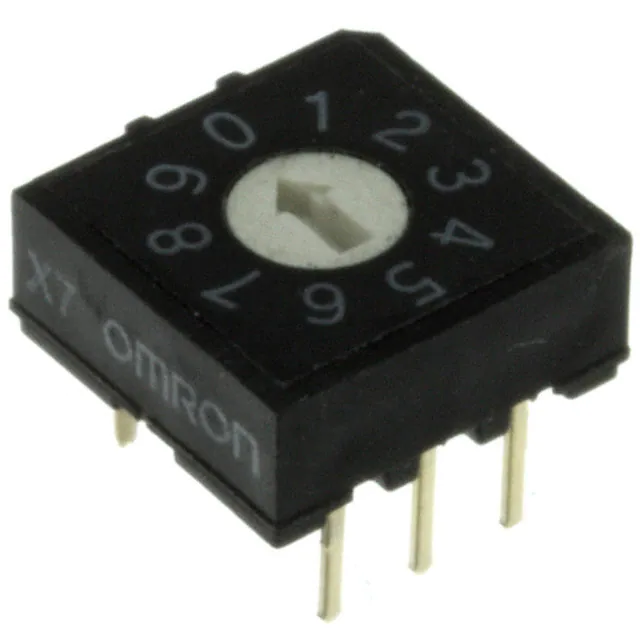

A6R-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
1,535 |
|
데이터시트 |
A6R | Tray | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6H-0102SWITCH SLIDE DIP SPST 0.025A 24V |
1,508 |
|
데이터시트 |
A6H | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|
78B12TSWITCH SLIDE DIP SPST 0.15A 30V |
349 |
|
데이터시트 |
78 | Tube | Active | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76SB12TSWITCH ROCKER DIP SPST 0.15A 30V |
4,541 |
|
데이터시트 |
76 | Tube | Active | SPST | 12 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

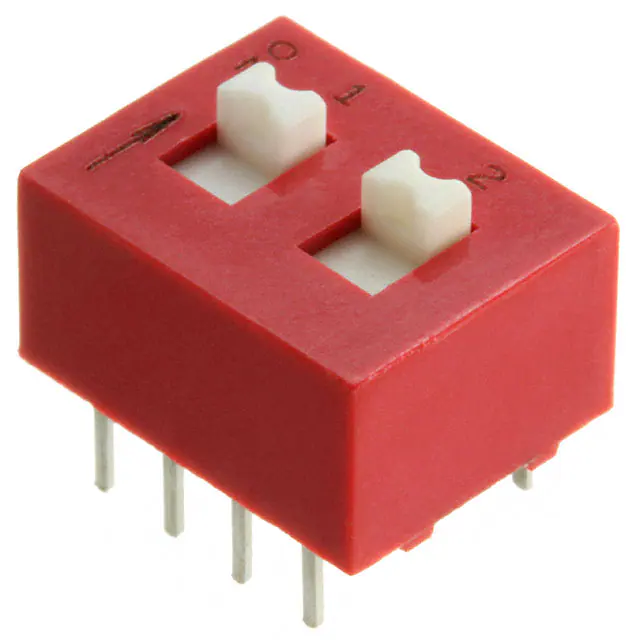

78F02TSWITCH SLIDE DIP DPST 0.15A 30V |
1,506 |
|
데이터시트 |
78 | Tube | Active | DPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
