DIP 스위치
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 회로 | 위치 수 | 전류 정격(암페어) | 전압 정격 | 액추에이터 유형 | 액추에이터 레벨 | 접점 재질 | 접점 마감 | 보드 위 높이 | 장착 유형 | 종단 스타일 | 피치 | 세척 가능 | 기능 | 작동 온도 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BP02YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|
BP03YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 3 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|
BP04YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

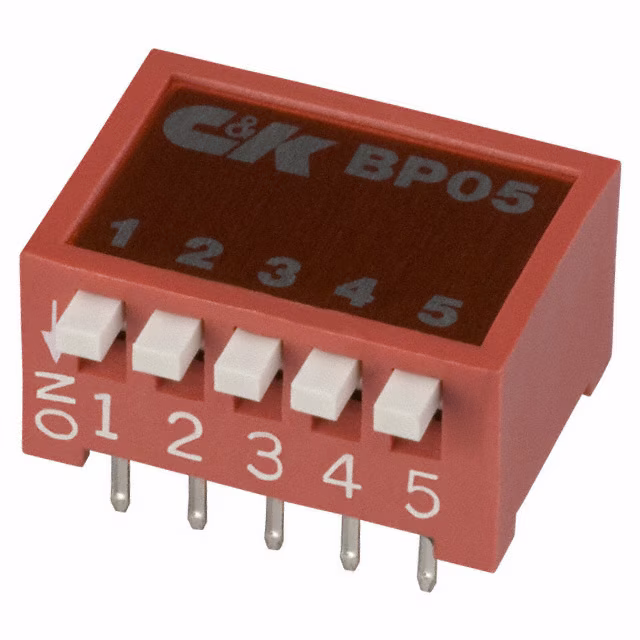

BP05YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 5 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|
BP06YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

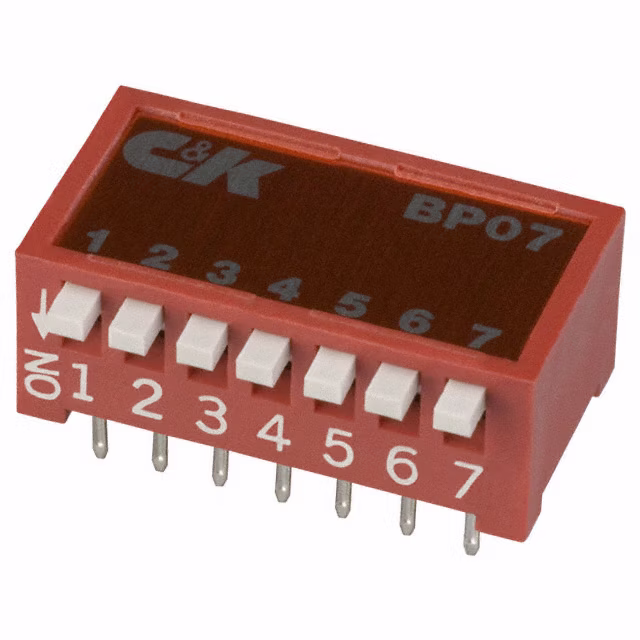

BP07YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 7 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

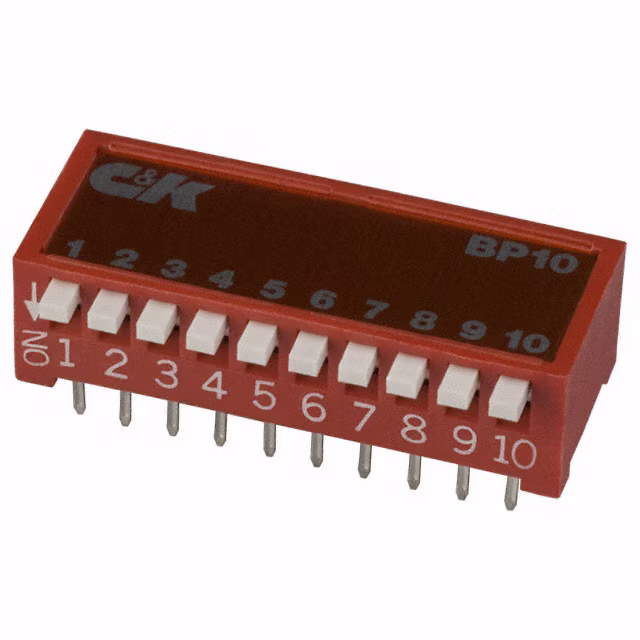

BP10YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Tube | Obsolete | SPST | 10 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

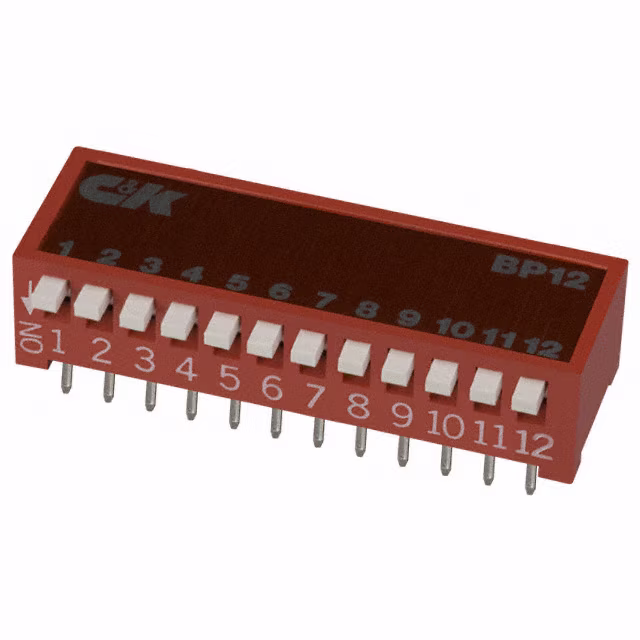

BP12YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
데이터시트 |
BP | Bag | Obsolete | SPST | 12 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|
79A10SWITCH SLIDE DIP 10PST 0.125A 6V |
0 |
|
데이터시트 |
79A | Bag | Obsolete | 10PST | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SD06H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
데이터시트 |
SD | Tube | Obsolete | SPST | 6 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

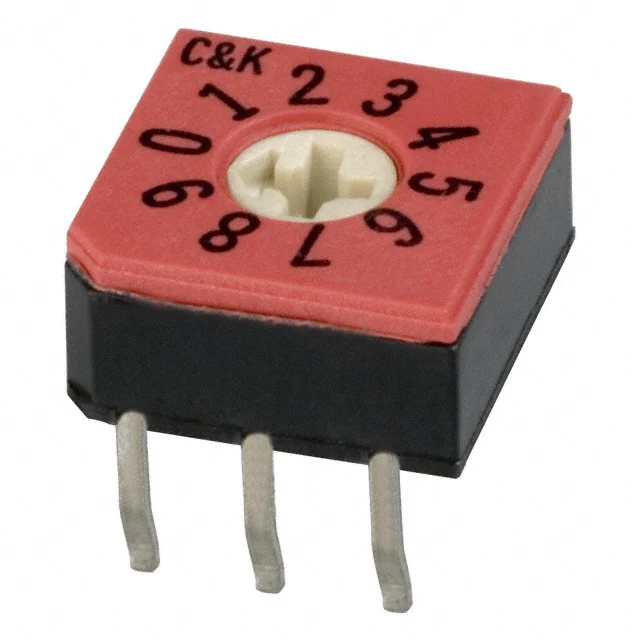

CD10RM0CKSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
데이터시트 |
CD | Bag | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
|
CD10RM0AKSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
데이터시트 |
CD | Bag | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CD10RM0SKSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
데이터시트 |
CD | Bag | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

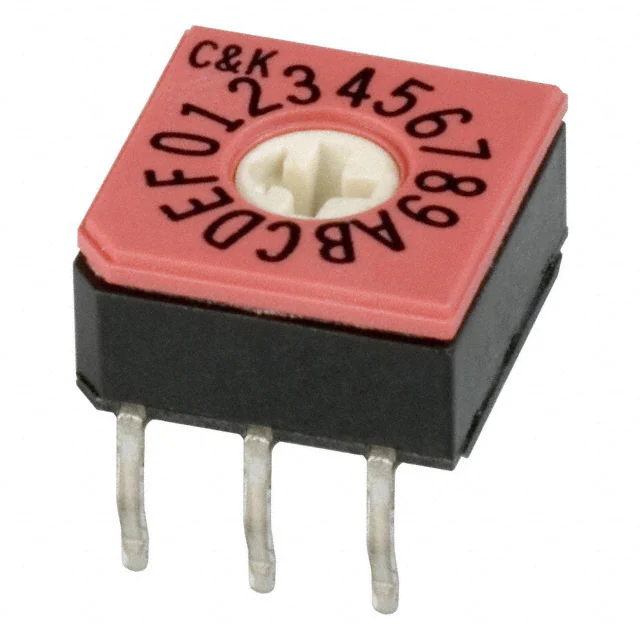

CD16RM0CKSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
데이터시트 |
CD | Bag | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CD16RM0AKSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
데이터시트 |
CD | Bag | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CD16RM0SKSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
데이터시트 |
CD | Bag | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
SD02H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
데이터시트 |
SD | Tube | Obsolete | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD03H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
데이터시트 |
SD | Tube | Obsolete | SPST | 3 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD04H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
데이터시트 |
SD | Tube | Obsolete | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

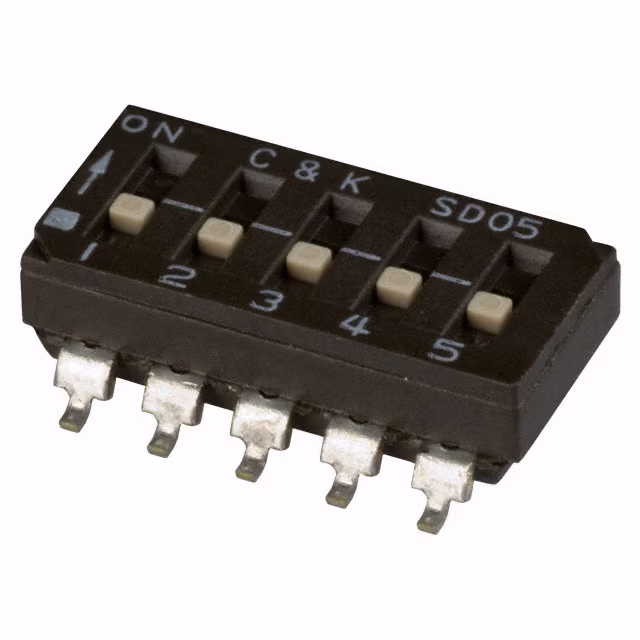

SD05H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
데이터시트 |
SD | Tube | Obsolete | SPST | 5 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
