DIP 스위치
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 회로 | 위치 수 | 전류 정격(암페어) | 전압 정격 | 액추에이터 유형 | 액추에이터 레벨 | 접점 재질 | 접점 마감 | 보드 위 높이 | 장착 유형 | 종단 스타일 | 피치 | 세척 가능 | 기능 | 작동 온도 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65501RTDIP ROTARY SWITCH P60 10MM |
0 |
|
데이터시트 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FD02FR10H-RSWITCH ROTARY DIP BCD 100MA 5V |
0 |
|
데이터시트 |
FD02 | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC16H-RSW ROTARY DIP HEX COMP 100MA 5V |
0 |
|
데이터시트 |
FD02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FR16H-RSWITCH ROTARY DIP HEX 100MA 5V |
0 |
|
데이터시트 |
FD02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.126" (3.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC10H-RSW ROTARY DIP BCD COMP 100MA 5V |
0 |
|
데이터시트 |
FD02 | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
PT65301L508SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
데이터시트 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65302L508SW ROTARY DIP BCD COMP 0.15A 24V |
0 |
|
데이터시트 |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65301L254SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
데이터시트 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
P65SMT702DIP ROTARY SWITCH P60 10MM |
0 |
|
데이터시트 |
P65 | Bulk | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
P36802L254DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
데이터시트 |
P36 | Bulk | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36106L254DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
데이터시트 |
P36 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36801L254DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
데이터시트 |
P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36302L254DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
데이터시트 |
P36 | Bulk | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36301L254DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
데이터시트 |
P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36103L254SWITCH ROTARY DIP HEX 0.1A 24V |
0 |
|
데이터시트 |
P36 | Tube | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
|
P36101L254SWITCH ROTARY DIP BCD 0.1A 24V |
0 |
|
데이터시트 |
P36 | Tube | Active | BCD | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
435470-5SW ROCKER DIP DPDT 0.025A 24V |
0 |
|
데이터시트 |
7000 | Tube | Active | DPDT | 1 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
P60AS706DIP ROTARY SWITCH P60 10MM |
0 |
|
데이터시트 |
P60AS | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.244" (6.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
P36S301DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
데이터시트 |
P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.151" (3.84mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|

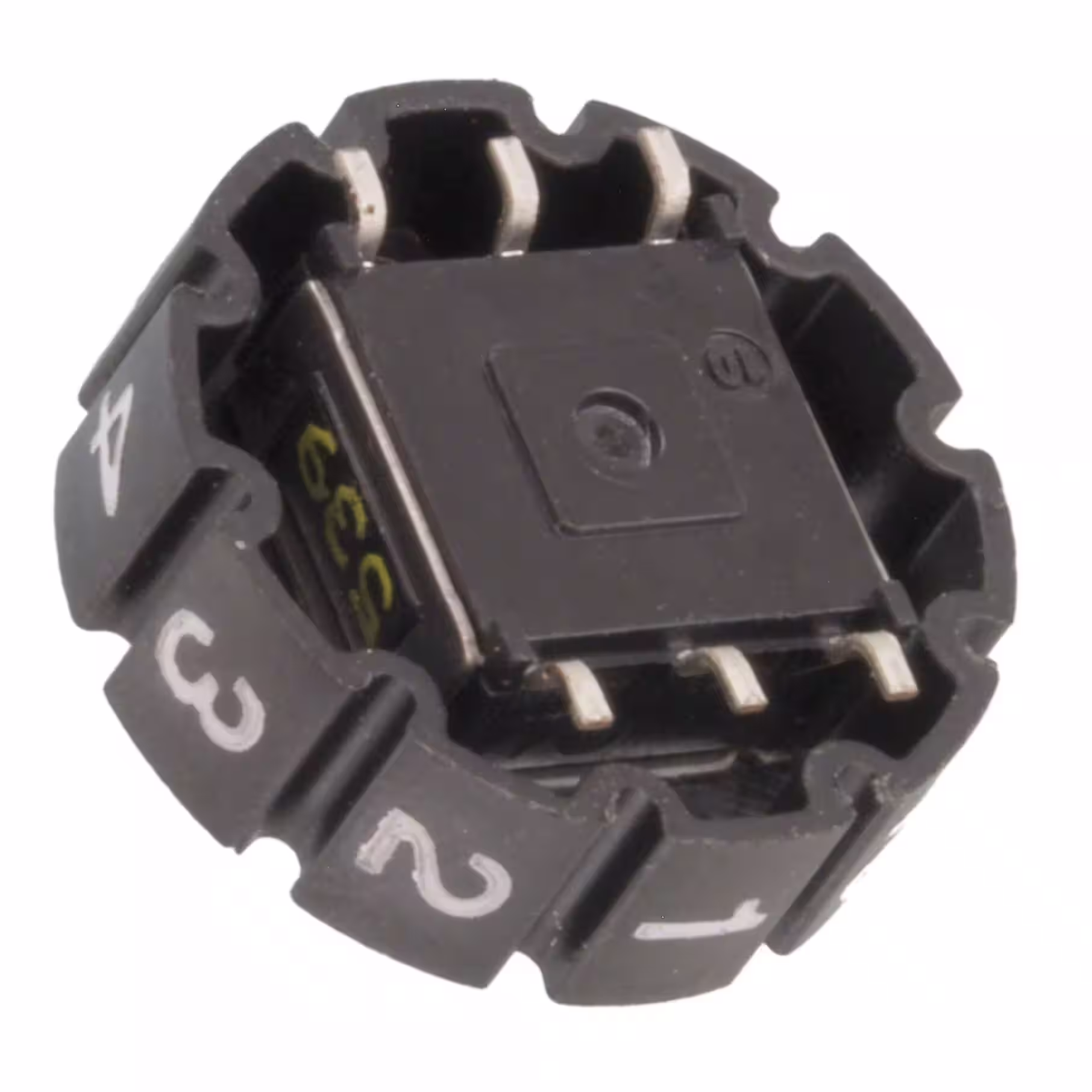

DH101ALSMT002SWITCH ROTARY DIP BCD 0.1A 42V |
0 |
|
데이터시트 |
DH | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
