자동차 릴레이
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 코일 유형 | 코일 전류 | 코일 전압 | 연락처 양식 | 접점 정격(전류) | 스위칭 전압 | 필수 작동 전압 | 필수 릴리스 전압 | 작동 시간 | 릴리스 시간 | 기능 | 장착 유형 | 종단 스타일 | 작동 온도 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3M1ACQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
AZ987-2A-12DETRELAY AUTOMOTIVE DPST 30A 12V |
0 |
|
데이터시트 |
AZ987 | Box | Active | Non Latching | 47.2 mA | 12VDC | DPST-NO (2 Form A) | 30 A | 16VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|

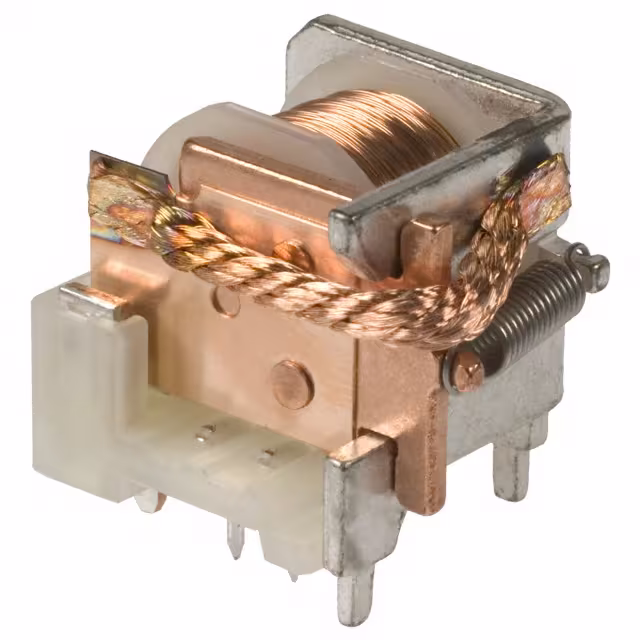

VKP-11F42RELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
데이터시트 |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ979-1A-24DDERELAY AUTOMOTIVE SPST 80A 24V |
0 |
|
데이터시트 |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ983-1A-12DERRELAY AUTOMOTIVE SPST 80A 12V |
0 |
|
데이터시트 |
AZ983 | Box | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9861-1A-24DC4R1RELAY AUTOMOTIVE SPST 40A 24V |
0 |
|
데이터시트 |
AZ9861 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 6 ms | 3 ms | 280-ISO, Resistor, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
|
AZ979-1A-12DRERELAY AUTOMOTIVE SPST 80A 12V |
0 |
|
데이터시트 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ979-1A-12DRC1ERELAY AUTOMOTIVE SPST 80A 12V |
0 |
|
데이터시트 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Epoxy, SUPER-ISO w/ Steel Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A2S1CSQ24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
데이터시트 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9801-1A-12DRELAY AUTOMOTIVE SPST 70A 12V |
0 |
|
데이터시트 |
AZ9801 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 7 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3F1CCQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31CCQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
0 |
|
데이터시트 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9801-1A-12DERELAY AUTOMOTIVE SPST 70A 12V |
0 |
|
데이터시트 |
AZ9801 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
