AC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력 | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전압 - 출력 5 | 전압 - 출력 6 | 전류 - 출력 1 | 전류 - 출력 2 | 전류 - 출력 3 | 전류 - 출력 4 | 전류 - 출력 5 | 전류 - 출력 6 | 전력(와트) | 응용 프로그램 | 전압 - 절연 | 효율성 | 작동 온도 | 기능 | 장착 유형 | 크기/치수 | 승인 기관 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZPT40-51515NAC/DC CONVERTER 5V +/-15V 40W |
0 |
|
데이터시트 |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 3.2 A | 1.5 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
ZPT40-52412NAC/DC CONVERTER 5V 24V -12V 40W |
0 |
|
데이터시트 |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | -12V | - | - | - | 3.2 A | 1 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
|
ZPT40-5245NAC/DC CONVERTER 5V 24V -5V 40W |
0 |
|
데이터시트 |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | -5V | - | - | - | 3.2 A | 1 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|

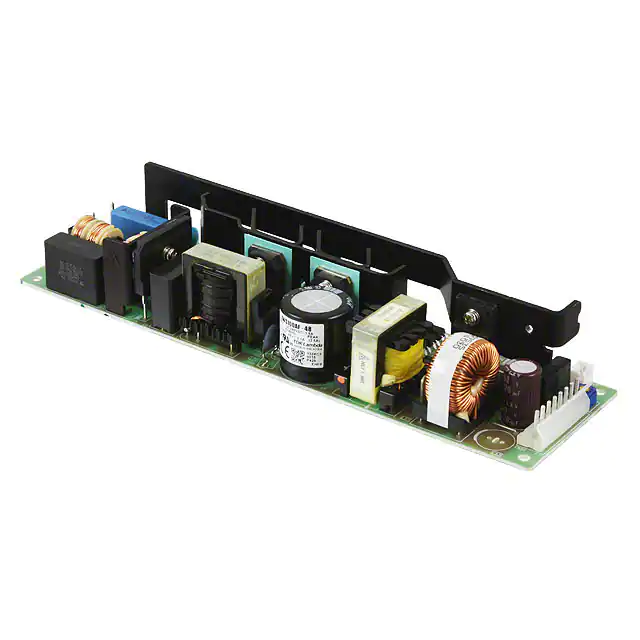

ZWS100AF-12AC/DC CONVERTER 12V 100W |
0 |
|
데이터시트 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-15AC/DC CONVERTER 15V 100W |
0 |
|
데이터시트 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-24AC/DC CONVERTER 24V 100W |
0 |
|
데이터시트 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-3AC/DC CONVERTER 3.3V 100W |
0 |
|
데이터시트 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 69% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-36AC/DC CONVERTER 36V 100W |
0 |
|
데이터시트 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-5AC/DC CONVERTER 5V 100W |
0 |
|
데이터시트 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|

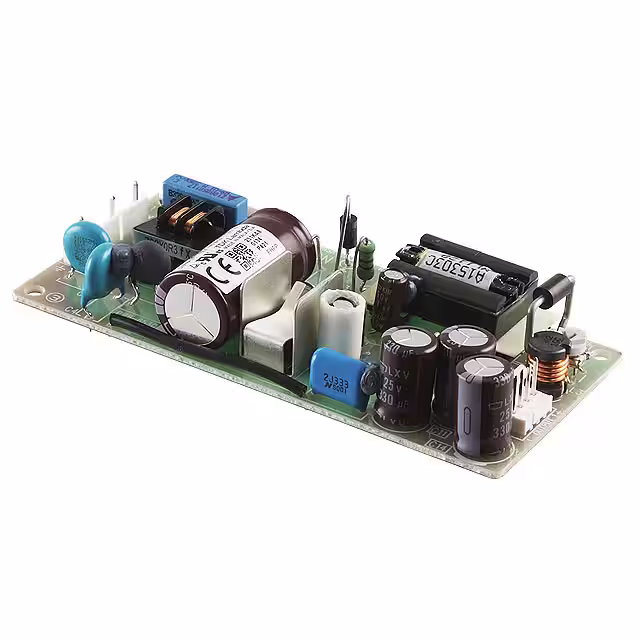

ZWS10-12AC/DC CONVERTER 12V 10W |
0 |
|
데이터시트 |
ZWS (10W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 850 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 70% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.14" L x 1.97" W x 0.83" H (105.1mm x 50.0mm x 21.0mm) | CE, cURus, TUV |
|
|
ZWS10-24AC/DC CONVERTER 24V 10W |
0 |
|
데이터시트 |
ZWS (10W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 450 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 71% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.14" L x 1.97" W x 0.83" H (105.1mm x 50.0mm x 21.0mm) | CE, cURus, TUV |
|
|
ZWS10-5AC/DC CONVERTER 5V 10W |
0 |
|
데이터시트 |
ZWS (10W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 70% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.14" L x 1.97" W x 0.83" H (105.1mm x 50.0mm x 21.0mm) | CE, cURus, TUV |
|

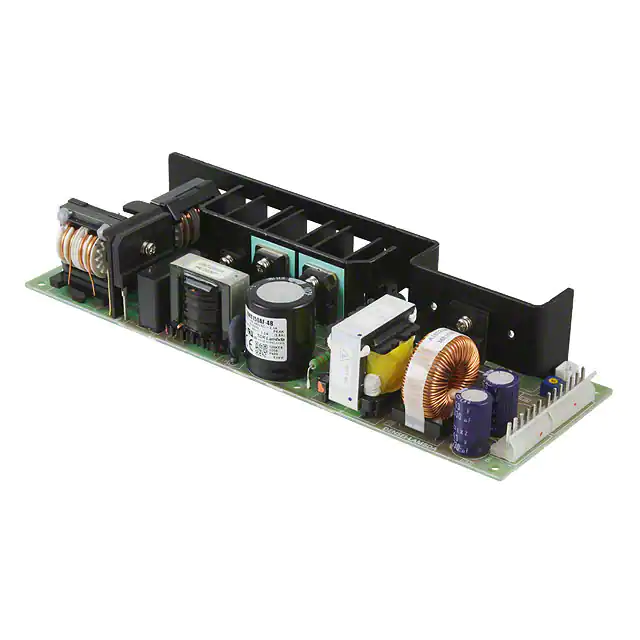

ZWS150AF-12AC/DC CONVERTER 12V 150W |
0 |
|
데이터시트 |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-15AC/DC CONVERTER 15V 150W |
0 |
|
데이터시트 |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-24AC/DC CONVERTER 24V 150W |
0 |
|
데이터시트 |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-36AC/DC CONVERTER 36V 150W |
0 |
|
데이터시트 |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-48AC/DC CONVERTER 48V 150W |
0 |
|
데이터시트 |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-5AC/DC CONVERTER 5V 150W |
0 |
|
데이터시트 |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 77% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
ZWS150PAF-24AC/DC CONVERTER 24V 150W |
0 |
|
데이터시트 |
ZWS-PAF (150W) | Bulk | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.19" L x 3.15" W x 1.46" H (208.0mm x 80.0mm x 37.0mm) | CE |
|
|
ZWS150PAF-36AC/DC CONVERTER 36V 150W |
0 |
|
데이터시트 |
ZWS-PAF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.19" L x 3.15" W x 1.46" H (208.0mm x 80.0mm x 37.0mm) | CE |
