스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB-1715PKSPEAKER 8OHM 200MW TOP PORT 74DB |
1,476 |
|
데이터시트 |
PB | Bulk | Active | Magnetic | General Purpose | 1.5 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.669" Dia (17.00mm) | 0.315" (8.00mm) |
|
CMS-15118D-L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,025 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CES-2704-088L050SPEAKER 8OHM 800MW TOP PORT 90DB |
564 |
|
데이터시트 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 50 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Plastic | Nd-Fe-B | - | - | Wire Leads | 1.063" Dia (27.00mm) | 0.193" (4.90mm) |
|
CES-26138-16L030SPEAKER 6OHM 1.2W TOP PORT 95DB |
377 |
|
데이터시트 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 500 Hz ~ 20 kHz | 1kHz | 6 Ohms | 95.00 | 1.2W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.315" (8.00mm) |
|
AST-030C0MR-RSPEAKER 100OHM 150MW TOP PT 80DB |
345 |
|
데이터시트 |
AST | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 10 kHz | 1200Hz | 100 Ohms | 80.00 | 100mW/100mm | Sound Pressure Level (SPL) | 150 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.169" Dia (29.70mm) | 0.500" (12.70mm) |
|
CMS-201437-24SP-X8SPEAKER, 20 X 14 MM, 3.7 MM DEEP |
623 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1.05kHz | 4 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.146" (3.70mm) |
|

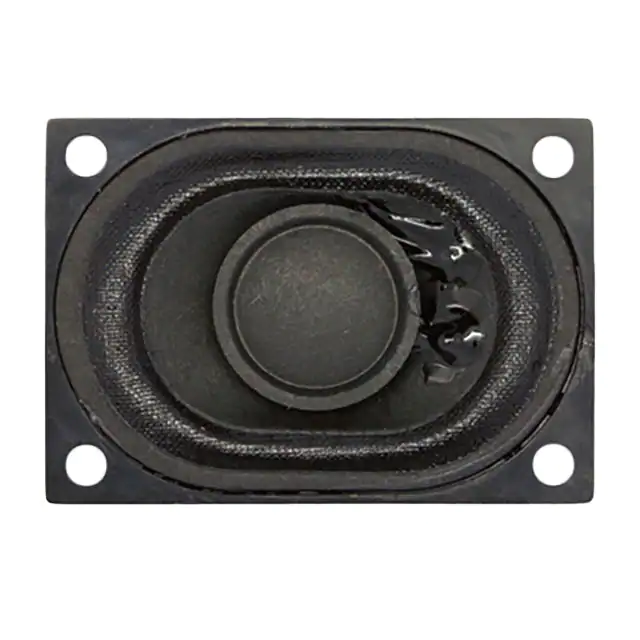

SC400308-1SPEAKER 8OHM 2W TOP PORT 97DB |
4,107 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 380Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Cloth | - | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.472" (12.00mm) |
|

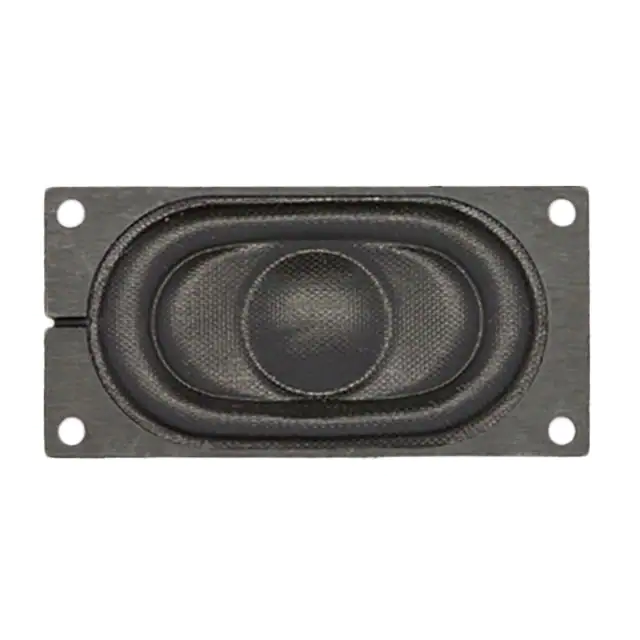

SC400608-1SPEAKER 8OHM 2W TOP PORT 90DB |
227 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 650Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | - | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.228" (5.80mm) |
|
CMS-405-158N-67SPEAKER 8OHM 1.5W TOP PORT 103DB |
1,247 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 103.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" Dia (40.00mm) | 0.220" (5.60mm) |
|

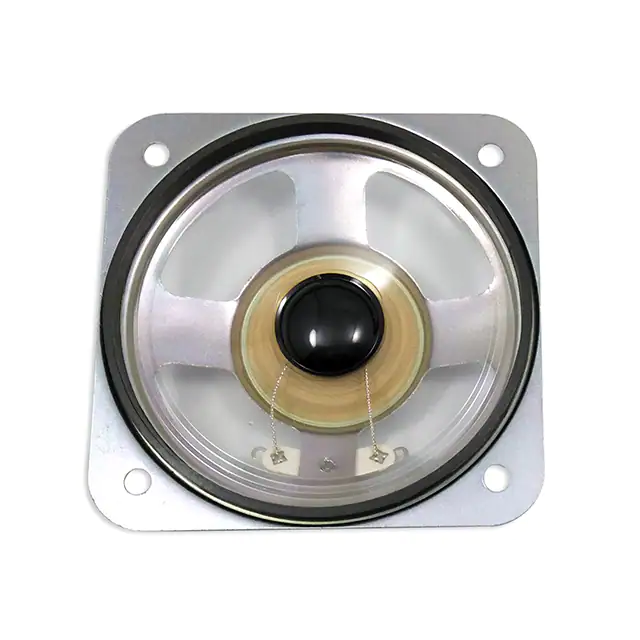

WSP-7704SPEAKER 4OHM 3W TOP PORT 102DB |
415 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | - | 330Hz | 4 Ohms | 102.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 3.039" L x 3.039" W (77.20mm x 77.20mm) | 0.827" (21.00mm) |
|
K 50 - 50 OHMSPEAKER 50OHM 2W TOP PORT 83DB |
343 |
|
데이터시트 |
Miniature Speaker | Bulk | Active | - | General Purpose | 250 Hz ~ 12 kHz | 500Hz | 50 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.669" (17.00mm) |
|
CDS-27204-L1006SPEAKER 4OHM 2W TOP PORT 93DB |
1,618 |
|
데이터시트 |
CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.232" (5.90mm) |
|
|
CDS-5715-254SP-X5SPEAKER, 57 X 15.5 MM DEEP, PEEK |
713 |
|
데이터시트 |
CDS | Tray | Active | Magnetic | General Purpose | 384 Hz ~ 4.5 kHz | 480Hz | 4 Ohms | 107.00 | 2W/100mm | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | IPX5 | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | 0.610" (15.50mm) |
|
|
AS05045MR-RSPEAKER 45OHM 1W TOP PORT 102DB |
1,989 |
|
데이터시트 |
AS | Bulk | Active | Magnetic | General Purpose | 230 Hz ~ 15 kHz | 350Hz | 45 Ohms | 102.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.283" (7.20mm) |
|

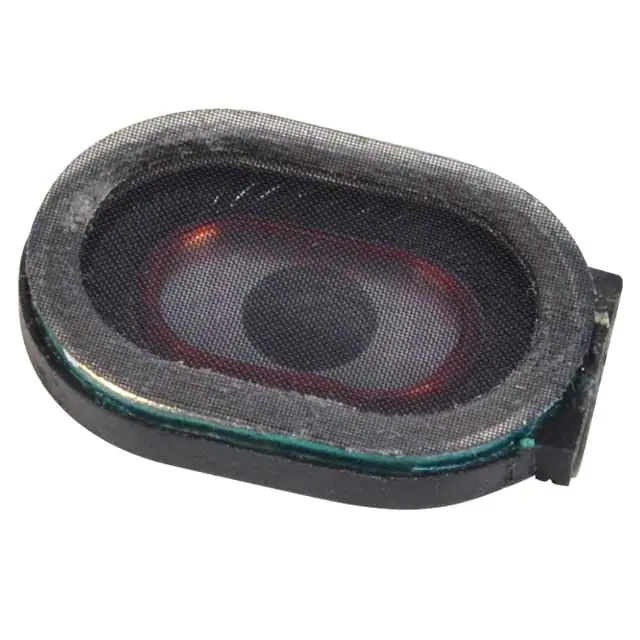

CDS-20144SPEAKER 4OHM 1W TOP PORT 92DB |
1,188 |
|
데이터시트 |
CDS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 4 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.138" (3.50mm) |
|
CDS-27208-L100SPEAKER 8OHM 2W TOP PORT 95DB |
2,913 |
|
데이터시트 |
CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.232" (5.90mm) |
|

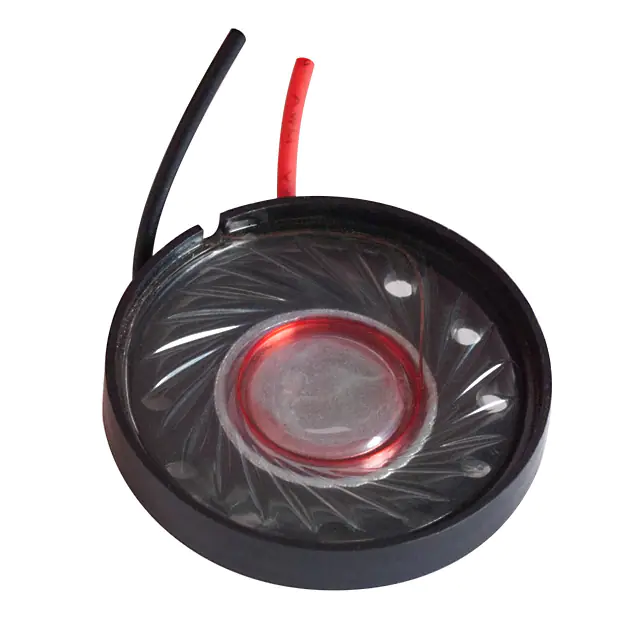

CLS0271M-L152SPEAKER 8OHM 100MW TOP PORT 89DB |
1,097 |
|
데이터시트 |
CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 20 kHz | 530Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.063" Dia (27.00mm) | 0.228" (5.80mm) |
|

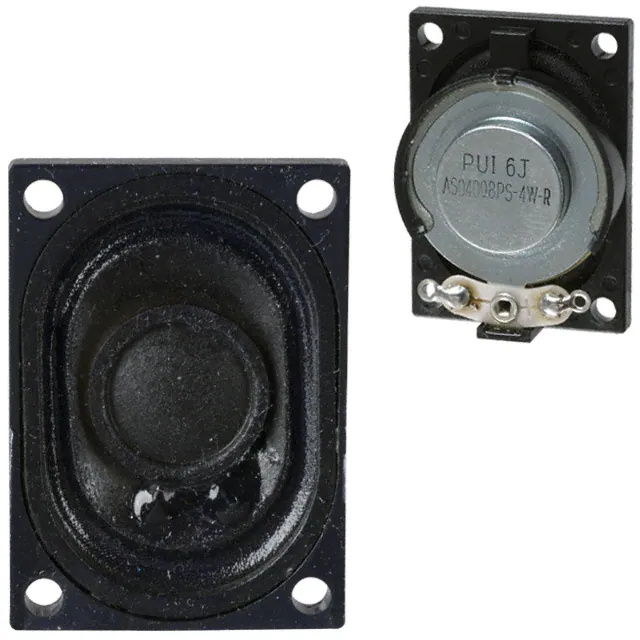

AS04008PS-4W-WR-RSPEAKER 8OHM 2W TOP PORT 84DB |
5,142 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.472" (12.00mm) |
|
CMS-30205-158L120-67SPEAKER 8OHM 1.5W TOP PORT 96DB |
655 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.220" (5.60mm) |
|
|
CES-24156-18PM-67ENCLOSED SPEAKER, 1W, 8OHM |
407 |
|
데이터시트 |
CES | Tray | Active | Magnetic | General Purpose | 960 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Oval | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) | 0.224" (5.70mm) |
